Validate Server Keys Using IsServerKeyValid Function And Send Email

Posted by Hari Prasad on Aug 10, 2018 3:11:44 AM

This custom trigger function is used to find the validity of server key(s) installed in JSCAPE MFT Server. This function use number of days as a parameter where the number of days say "n" is used to check the validity of the keys prior (n days)  to the expiry date.

See How to Create Custom Trigger Functions for details on installation.

Downloads

Source code and build instructions

How to validate a Server Key using IsServerKeyValid Function

Let me now show you how to implement that.



1. Make sure you have IsServerKeyValid function installed

Before creating a custom trigger using function IsServerKeyValid, you need to have build installed in the server where JSCAPE MFT Server is running.



2. Create a Trigger to Validate Server Key

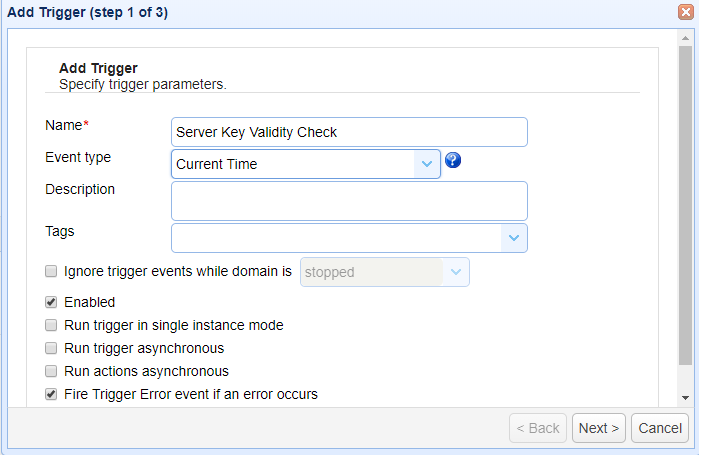

Login into admin console of JSCAPE MFT Server > Triggers and Click Add to create a Trigger

Give the trigger a Name and then select the  Current Time event type from the drop-down list.

 is_server_key_valid_img1

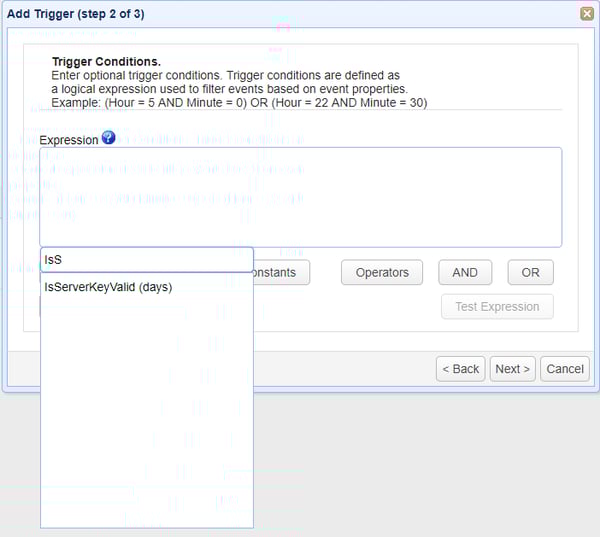

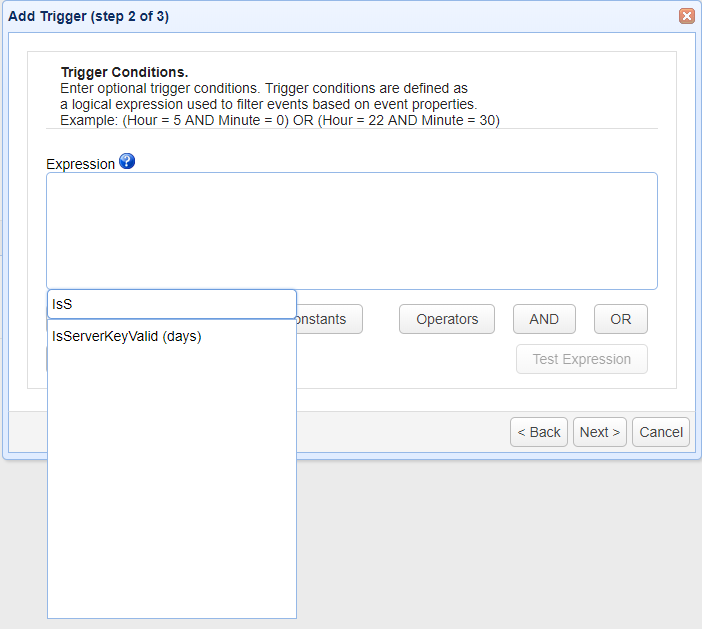

Click Next to Step 2 where a condition can be set to execute the trigger.  Now Click Functions button to

select the IsServerKeyValid function.



is_server_key_valid_img2

IsServerKeyValid function has the below method signature

- IsServerKeyValid (days)

This method signature is used to validate the server key(s) prior to expiry date.

For example; Consider that you want to validate the certificate expiry before 30 days pass the                  parameter as 30.



Since the event type is Current Time, on what time the trigger should be executed should be set along with the IsServerKeyValid function.

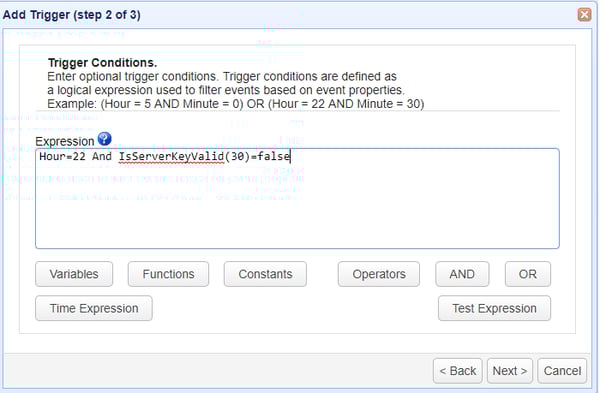

If the Trigger need to run on every day 10 PM add the condition Hour=22 along with IsServerKeyValid  function as shown below.

If the server keys are to be validated before 30 days use the expression as; If the server key(s) are about to expire the function will return false.

Hour=22 And IsServerKeyValid(30)=false



is_server_key_valid_img3

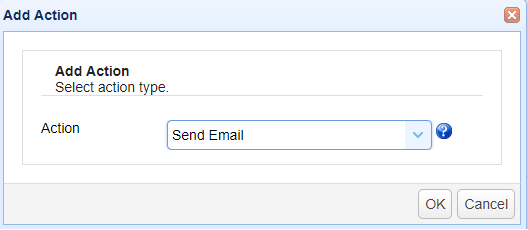

On Step 3 an action has to be added, in order to add an action click Add button and select the action "Send Email" from drop down list and Click OK



is_server_key_valid_img4

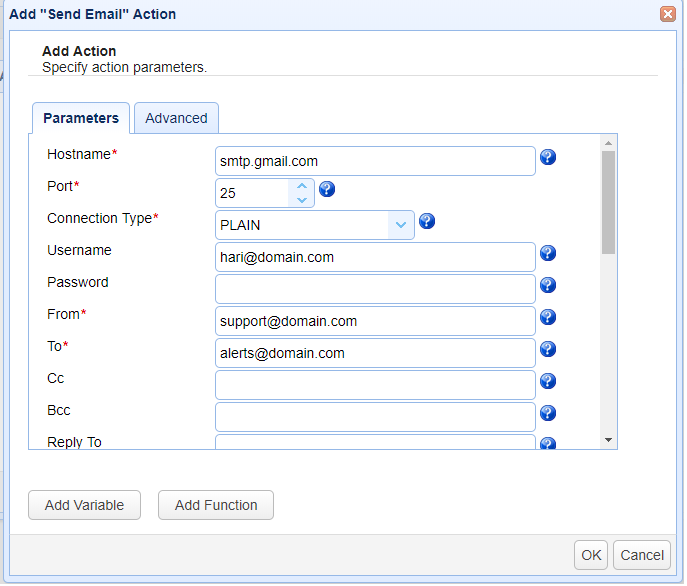

On OK to add and input the required parameters.



is_server_key_valid_img5

Enter all necessary parameters for sending that email notification, including the hostname of your SMTP server, the port number, connection type, etc. In the Body text box, enter the message you want to relay.

Click Ok to save the settings.

That's it. Now you know how to use the custom function IsServerKeyValid and send an alert if key(s) are not valid.
