Generate OFTP Messages Report Using OFTPMessagesReport Action

Posted by Hari Prasad on Nov 26, 2018 9:00:00 AM

This custom trigger action is used to export the details of the OFTP Message(s) which are received and

send from JSCAPE MFT Server.



How to export the OFTP messages details using OFTPMessagesReport Action

Let me now show you how to implement that.



1. Make sure you have OFTPMessagesReport Action installed

Before creating a custom trigger to export the details of OFTP Messages, you need to

have build installed in the server where JSCAPE MFT Server is running. Refer the below section for the

build.



Downloads

Source code and build instructions



2. Create a Trigger to export the OFTP Messages

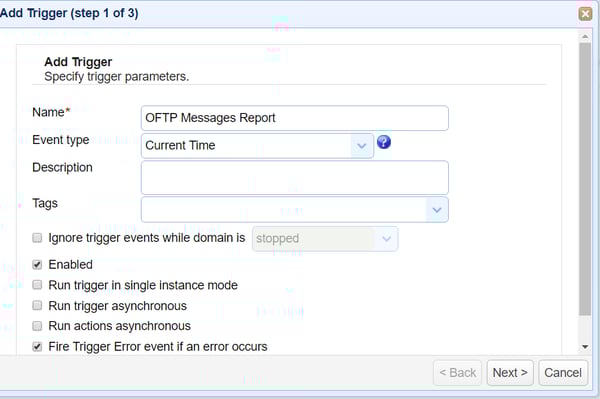

Login into admin console of JSCAPE MFT Server > Triggers and Click Add to create a Trigger

Give the trigger a Name and then select the Current Time event type from the drop-down list.



oftp_messages_report_action_img1





Click Next to Step 2 where a condition can be set to execute the trigger. Consider an example that we

need to have this report ready on each day after 22 hours and 30 minutes. For generating the report

after 22 hours and 30 minutes, set the condition as below;



"Hour=22 AND Minute=30"



oftp_messages_report_action_img2

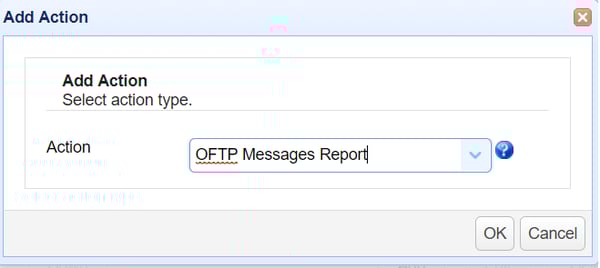

On Step 3 an action has to be added, in order to add an action click Add button and select the action

"OFTP Messages Report" from drop down list and Click OK



oftp_messages_report_action_img3

 If the action not listed then you need to have build installed in the server.

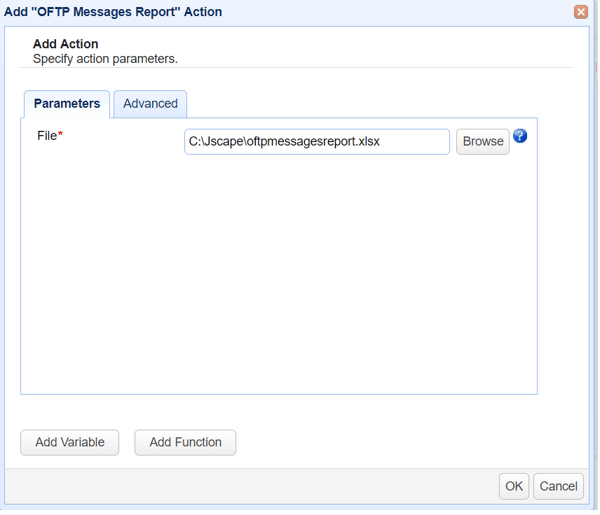

 On OK there would be file parameter for OFTPMessagesReport Action;

  - File (Where the data needs to be saved)



oftp_messages_report_action_img4-1

Click OK to save the settings. That's it. Now you know how to export the OFTP Messages using

OFTPMessagesReport action.
