Generate Key Report Using ExportKeys Action

Posted by Hari Prasad on Aug 23, 2018 3:03:38 AM

This custom trigger action is used to generate keys report in excel format installed in the server.

Downloads

Source code and build instructions

How to generate keys report using ExportKeys Action

 Let me now show you how to implement that.



1. Make sure you have ExportKeys Action installed

Before creating a custom trigger action, you need to have build installed in the server where JSCAPE MFT Server is running.



2. Create a Trigger to export keys for a domain

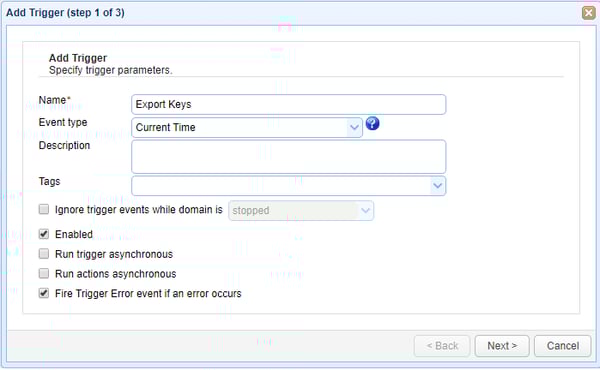

Login into admin console of JSCAPE MFT Server > Triggers and Click Add to create a Trigger

Give the trigger a Name and then select the Current Time event type from the drop-down list.



export_key_image1

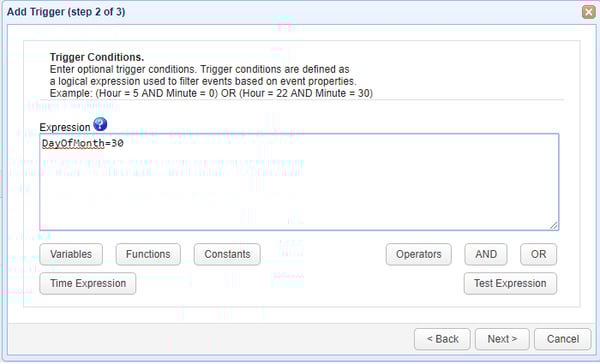

Click Next to Step 2 where a condition can be set to execute the trigger. Consider an example that we need to have this report ready on 30th each month. For generating the report on 30th, set the condition as below;

"DayOfMonth=30"



export_key_image2

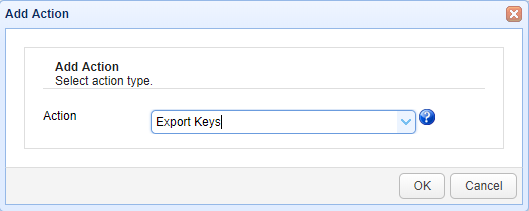

On Step 3 an action has to be added, in order to add an action click Add button and select the action "Export Keys" from drop down list and Click OK



export_key_image3



If the action not listed you need to have build installed in the server.

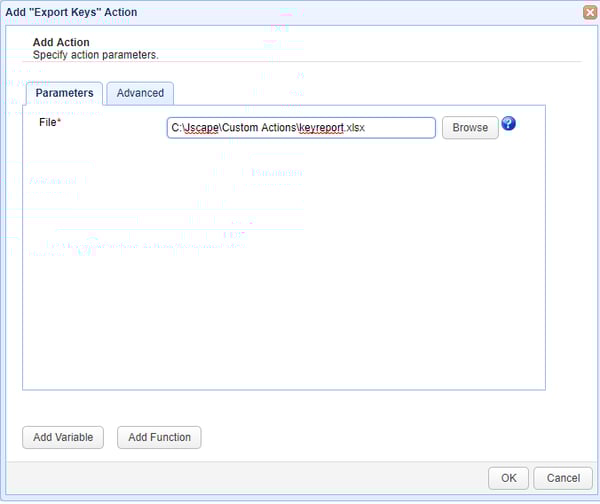

 On OK there would be a parameter as mentioned below for Export Keys Action;

  - File (Where the data needs to be saved)



export_key_image4



Click OK to save the settings. That's it. Now you know how to export the keys using ExportKeys action.
