Generate AS2 Messages Report Using AS2MessagesReport Action

Updated by Hari Prasad on

This custom trigger action is used to export the details of the AS2 Message(s) which are received and

send from JSCAPE MFT Server.



How to export the AS2 messages details using AS2MessagesReport Action

Let me now show you how to implement that.



1. Make sure you have AS2MessagesReport Action installed

Before creating a custom trigger to export the details of AS2 Messages, you need to have build installed

in the server where JSCAPE MFT Server is running. Refer the below section for the build.



Downloads

Source code and build instructions



2. Create a Trigger to export the AS2 Messages

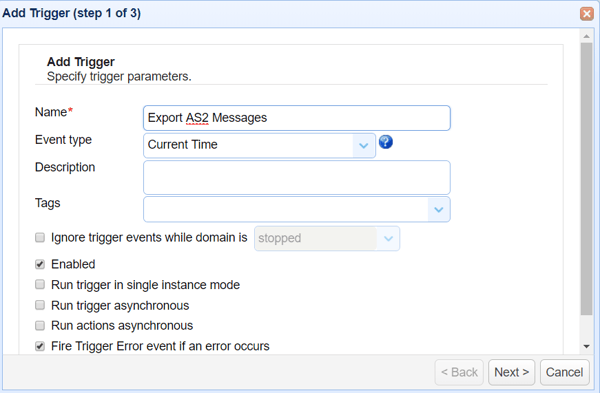

Login into admin console of JSCAPE MFT Server > Triggers and Click Add to create a Trigger

Give the trigger a Name and then select the Current Time event type from the drop-down list.



as2_messages_report_action_img1-1

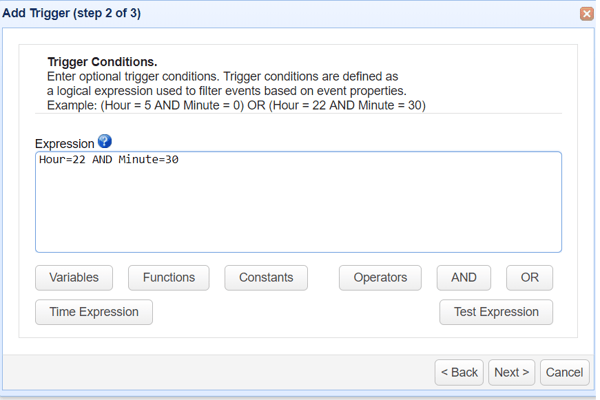

Click Next to Step 2 where a condition can be set to execute the trigger. Consider an example that we

need to have this report ready on each day after 22 hours and 30 minutes. For generating the report

after 22 hours and 30 minutes, set the condition as below;



"Hour=22 AND Minute=30"



as2_messages_report_action_img2-204558-edited

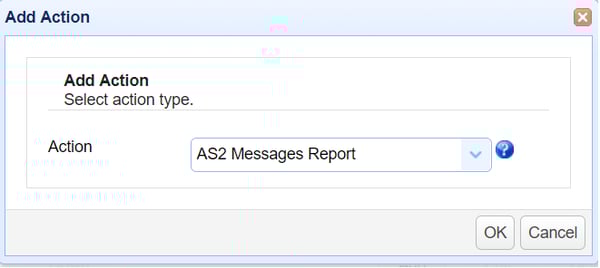

On Step 3 an action has to be added, in order to add an action click Add button and select the action

"AS2 Messages Report" from drop down list and Click OK



as2_messages_report_action_img3

 If the action not listed then you need to have build installed in the server.

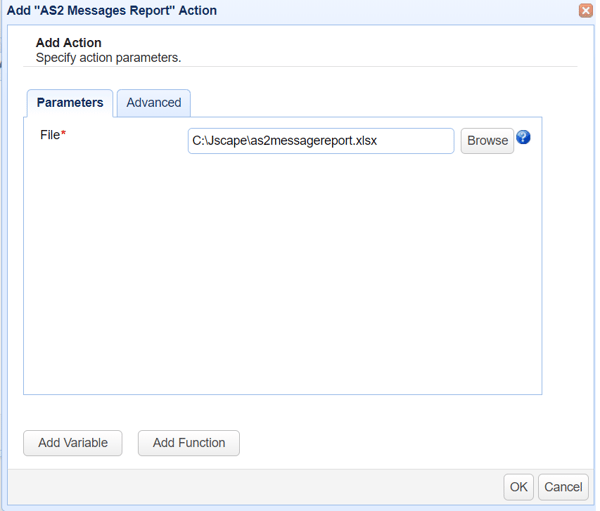

 On OK there would be a file parameter for AS2MessagesReport Action;

  - File (Where the data needs to be saved)



as2_messages_report_action_img4-1

Click OK to save the settings. That's it. Now you know how to export the AS2 Messages using

AS2MessagesReport action.
